Empower Your projects


TLC120 brings your profession to the next level

No matter the size/length of your project, Brinno has the right camera for you! The TLC120 has been specially designed to accomodate smaller projects including decks, landscaping, roofs, kitchen and bath remodels, and window installations.

Instant time lapse video

HDR sensor

Up to 3 weeks battery life

Professional App
*iOS only

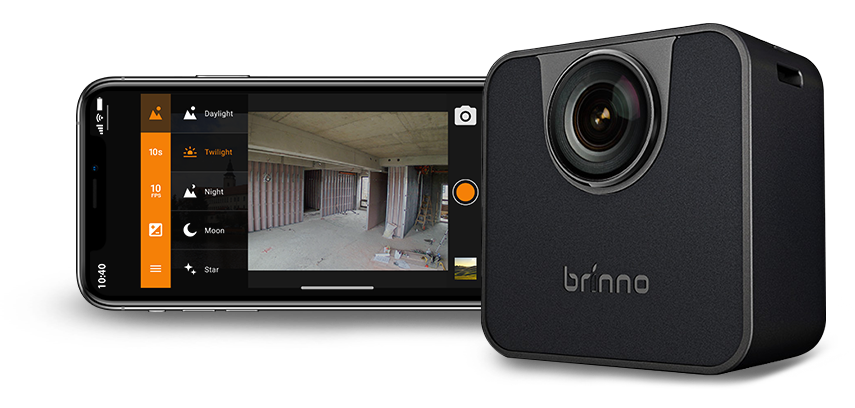

TLC120 black with phone


Battery life

HDR sensor

Instant video

Schedule setup

Customizable App
*iOS only

Weather resistant

Easy Time Lapse Technology

Take a sequence of photos at interval and shooting schedule of your choice. The camera auto-captures and edits frames using the Brinno App into a ready to use time lapse video.

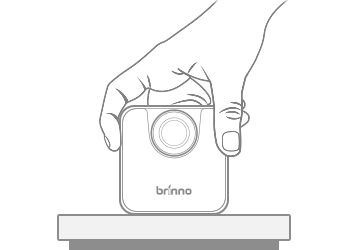

Place it

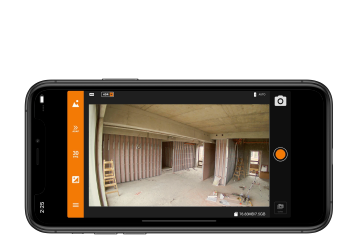

Connect to the app
& place it

Connect to the app

Start recording
your time lapse video

Start recording

Video is automatically
generated & ready to share!

Outdoor / Indoor

The TLC120 is a construction-proof camera. IPX4 weather resistant, dirt and dustproof, this tiny camera has been built to last through all regular construction scenarios.

Comtruction Proof

Weather Resistant


Low Light High Contrast

With a built-in HDR sensor, the TLC120 is able to automatically balance out high contrast scenes. In low-light scenarios, adjusting brightness can be done with a click of the button using the Brinno App!

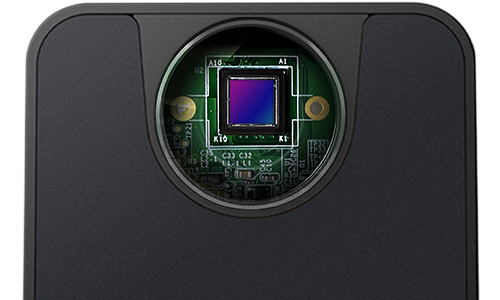

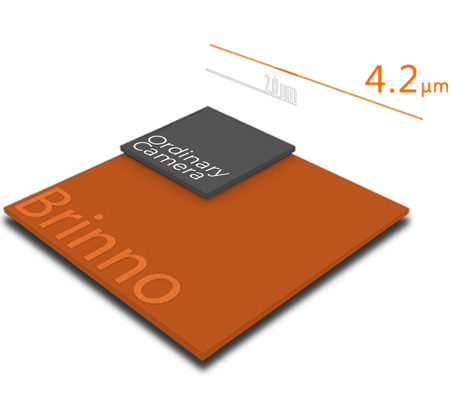

Stunningly HDR Sensor with Pixel Size 4.2μm

Ipx4 splash and weather resistant

Battery life


HDR sensor

SD card local storage

Battery life

112° wide angle

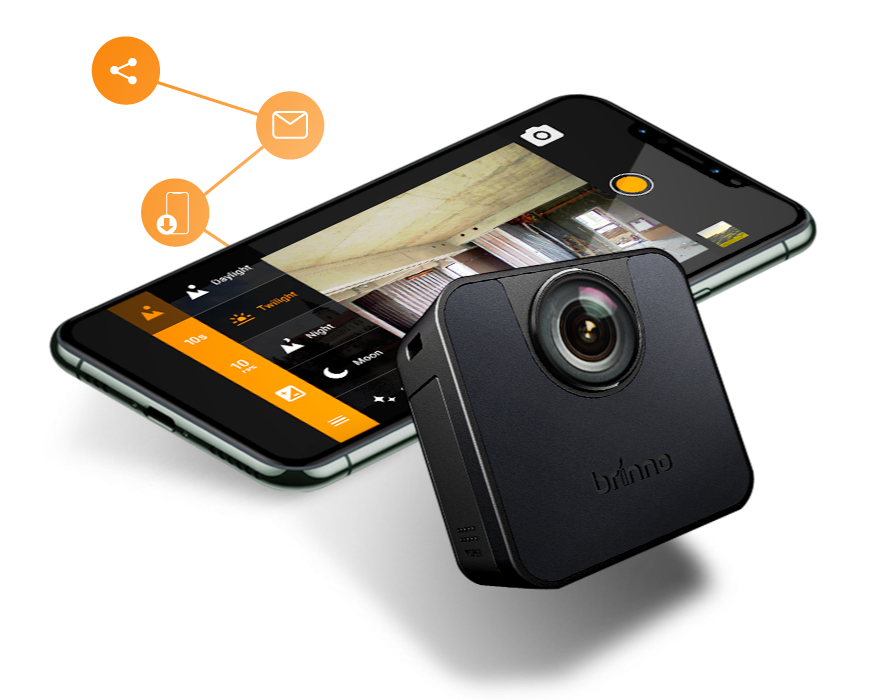

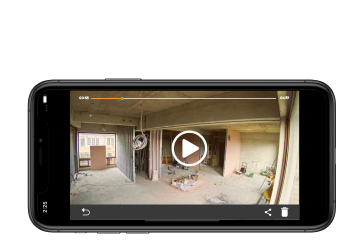

Use the Brinno App to change camera settings and preview your time lapse video!

The TLC120 camera is controlled entirely through the Brinno App*. From changing camera settings to previewing your time lapse video, the app has you covered. Download videos directly to your phone and share your creations instantly. With the Brinno App sharing your time lapse video has never been easier!
(*App supported by iOS only.)

Product name Wi-Fi TimeLapse Camera TLC120
Model No. TLC120
Splashproof IPX4
Image Sensor
  • 1/3“ HDR Image Sensor
  • Dynamic Range 115 db
  • Pixel Size 4.2μm
  • Sensitivity3650mV/lux-sec (Ultra good low light quality)
Optics Lens
  • Low Distortion Fixed Aspherical Lens
  • Aperture: F2.0
  • Field of View: 112°
  • FocalLength: 2.8 mm(Actual) , 19 mm (35mm equivalent)
Video Format AVI(1280x720 Resolution)
Shooting Setting
  • Scene:Daylight, Twilight, Night, Moon, Star
  • White Balance: Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light
  • Custom Image: Exposure, Saturation, Contrast, Sharpness
Memory Storage SD / SDHC Card (Supported up to 32 GB)
Power Source Li-Po Rechargeable Battery (1500mAh)DC IN: 5V (Micro USB Connector)
Battery Life 1.5 days with a 2 seconds time interval20 days with a 5 minutes time interval
Wireless Wi-Fi (802.11 b/g/n), Bluetooth 4.0 (BLE)
Brinno App iOS 7.0 above(Android NOT supported)
Camera Size 2.36x2.36x1.32 in (60x60x33.5 mm)
Camera Weight 3.6 oz (101 g)
Color Black
Package contents
  • HDR Time Lapse Camera (TLC120)
  • SD card
  • Micro USB cable
  • Quick guide
Operation temperature 32°F ~ 113°F (0°C ~ 45°C)

App Shutter Mode

(Using the Brinno Camera APP with Brinno TLC120 together for the Time Lapse shooting) / Scene: Daylight

Time Interval Frames Days
1 sec 66375 0.4
2 sec 62471 0.5
5 sec 53100 0.8
10 sec 42480 1.1
20 sec 30343 1.4
30 sec 23600 2.1
1 min 14160 3.5
5 min 3371 4.9
10 min 1727 4.9
1 hr 294 5.6
4 hr 74 5.6
24 hr 12 5.6

Camera Shutter Mode

(Start time lapse recording through camera shutter button) / Scene: Daylight

Time Interval Frames Days
1 sec 66375 0.5
2 sec 64130 0.7
5 sec 58224 1.1
10 sec 50475 1.5
20 sec 39865 2
30 sec 32940 3
1 min 21656 5
5 min 5789 7
10 min 3022 7
1 hr 523 8
4 hr 131 8
24 hr 22 8
  • The battery life chart demonstrates only when video recording.
  • Battery power consumption depends on factors such as the process of preview wait, file transfer, network configuration, and many other factors; actual results will vary.
  • The estimated battery life are tested under room temperature conditions of 25 degrees Celsius.
  • Battery life may vary based on environmental conditions, temperature, and many other factors; actual results will vary.
Recommended use Long term construction (Indoor) Long term construction (Outdoor & indoor) Short term remodeling project (Outdoor & indoor)
Viewfinder 1.44" LCD 1.44" LCD -
HDR sensor - Yes Yes
Aperture f/1.2 f/2.0 f/2.0
Field of view / Resolution 140° (480P) 112° (720P) 112° (720P)
112° (720P)
Aspherical lens - Yes Yes
Interchangeable CS mount lens - Yes -
HDR video - Yes Yes
Scene setting - Yes Yes
Low light capture - Yes Yes
Wi-Fi - - Yes
Bluetooth - - Yes
App preview & control - - Yes
Schedule setting Daily Daily Daily
Weather resistant IPX4 housing ATH110 optional IPX4 housing ATH120 optional IPX4
Power source 4 AA batteries,or DC IN 5V 1A 4 AA batteries,or DC IN 5V 1A Rechargeable battery (1500mAh), or DC IN 5V 2A
Battery life (at 1 hr interval)
Camera Only
78 days 44 days 12 days (operated with app)
22 days (operated without app)
Battery life (at 1 hr interval)
With Power Housing
- 313 days 56 days (operated with app)
100 days (operated without app)
Memory storage SD/SDHC card
(supported up to 32GB)
SD/SDHC card
(supported up to 32GB)
SD/SDHC card
(supported up to 32GB)
Package contents (main items) TLC200f1.2 TLC200Pro TLC120
Weather resistant housing ATH110 Weather resistant housing ATH120
Camera Wall Mount (AWM100) industrial-grade aeronautical aluminum
alloy clamp
Other compatiable accessories Camera clamp (ACC1000P) Power housing (ATH2000) Power housing (ATH2000)
- Camera clamp (ACC1000P) Camera clamp (ACC1000P)
- - Wall mount (AWM100)
img-setting-1 img-setting-2 img-setting-3
Recommended use Outdoor project Indoor project Low light environment
Scene Daylight Twilight Night
Time Interval 30 Secs 30 Secs 30 Secs
Frame rate 30 FPS 30 FPS 30 FPS
White balance Auto Auto Auto
HDR range High High High
Image quality Best Best Best
Exposure ±1 ±1 ±0
