• BCC100
    Long Term
    Project Recording
    View 2 months of construction in just 2 minutes!

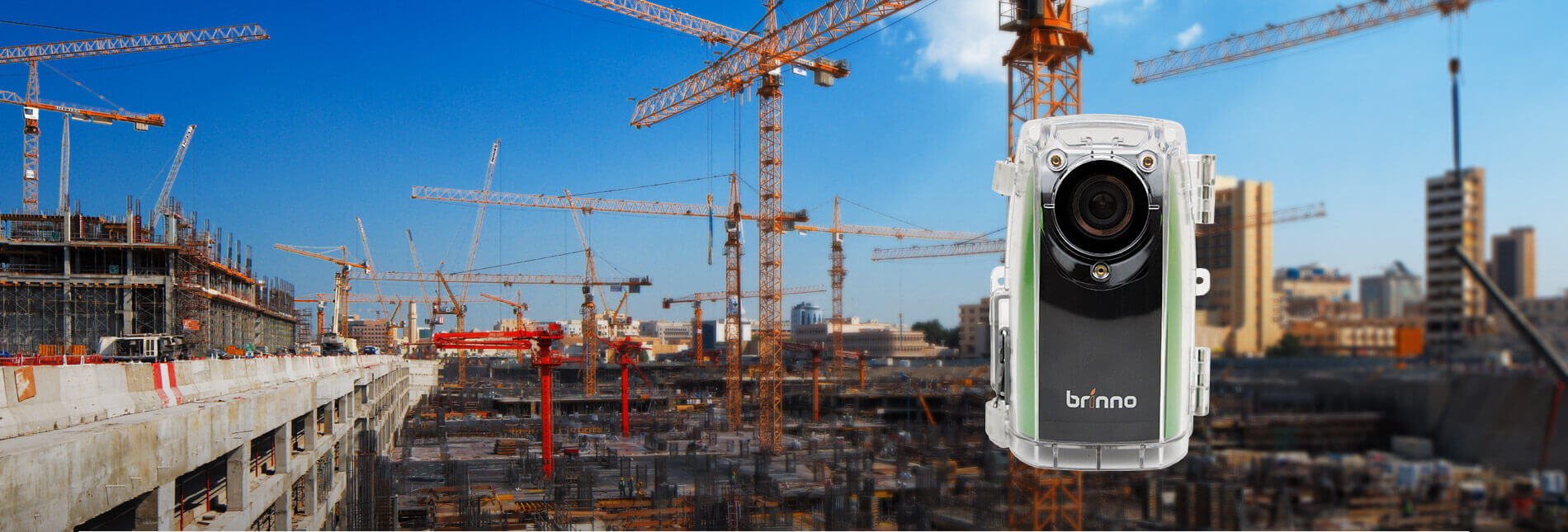

Jobsite Camera

Months of construction captured in minutes of time lapse video!

The Brinno Construction Camera is the effortless way to record any construction project. Set it and forget it. Create a time lapse video recorded at the rate you choose and played back at the speed you select when the project is complete.

Long Term Project Recording!

The Brinno Time Lapse Construction Camera is the effortless way to record any construction project. Set it and forget it. Get a time lapse video recorded at the rate you want, and played back at the rate you want when the project is done.

Dedicated Project Time Lapse Camera

Do you still use a DSLR to capture construction photos? Then spend a lot of time combining those photos into a time lapse video? Drop the traditional way, now you have better choice! Brinno Construction Camera produces Ready-to-View time lapse video in the camera with one button! You never knew how easy it could be!

Over 2 Months Battery Life

Brinno Construction Camera operates on long-lasting batteries. 4 AA batteries can last up to 4 months. You never need to worry about finding a power outlet!

100% DIY

Wire-free, tool-free, worry-free! No complicated power cord wiring to set up, no complicated video post-processing, easy to set-up, easy to use!

Construction Time Lapse Video 1,2,3!

3 steps to create construction time lapse video.

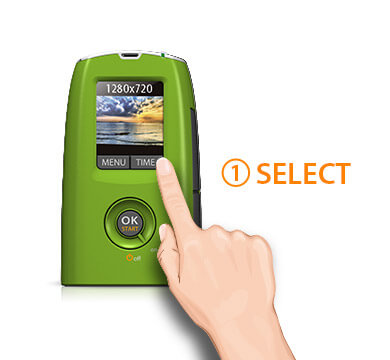

Step.1-Select

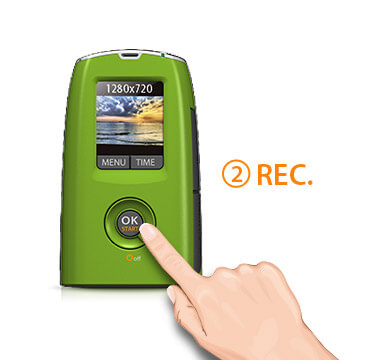

Step.2-Shot

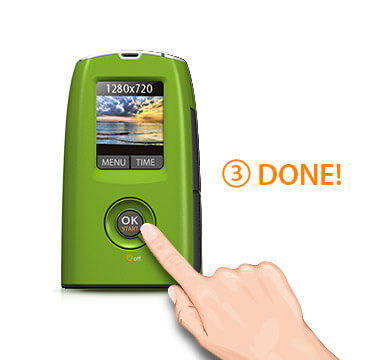

Step.3-Done!
Discover the Brinno BCC100

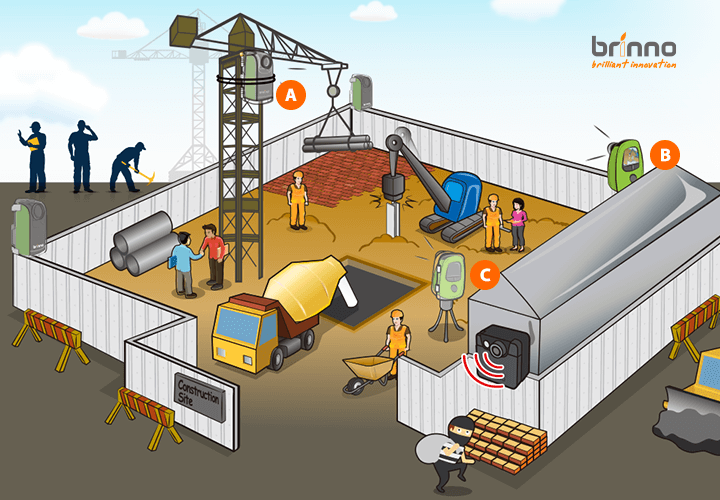

Why using Brinno camera for construction project?

To showcase your work

To protect against claims

To report to head office

Features
Time Lapse Video

Instant video

BCC100 captures and converts thousands of photos into a Time Lapse video instantly.

LCD Viewfinder

LCD Viewfinder

The 1.44” LCD screen allows you to frame your subject simply.

Long Lasting

Long Lasting

With a set of batteries, 270,000 frames can be captured

F1.2 Aspherical Lens

F1.2 Aspherical Lens

Better low light recording and sharper images.

140° Angle view

140° Angle view

140° field of view. A wider area is captured creating panoramic images of your project.

Weather Resistant

Weather Resistant

IPX4 weather resistant housing, let you records any project, indoors or outdoors.

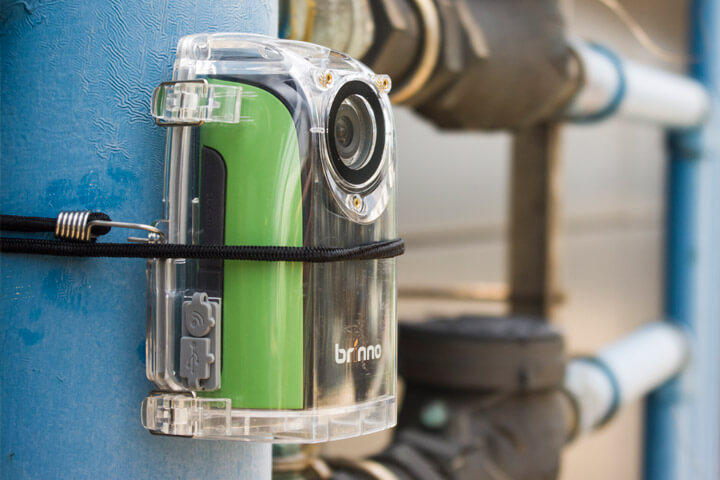

Worker friendly, Easy to set up!

No Professional photographer is needed to setup and operate or relocate the construction camera.
Any worker will be able to get the job done.

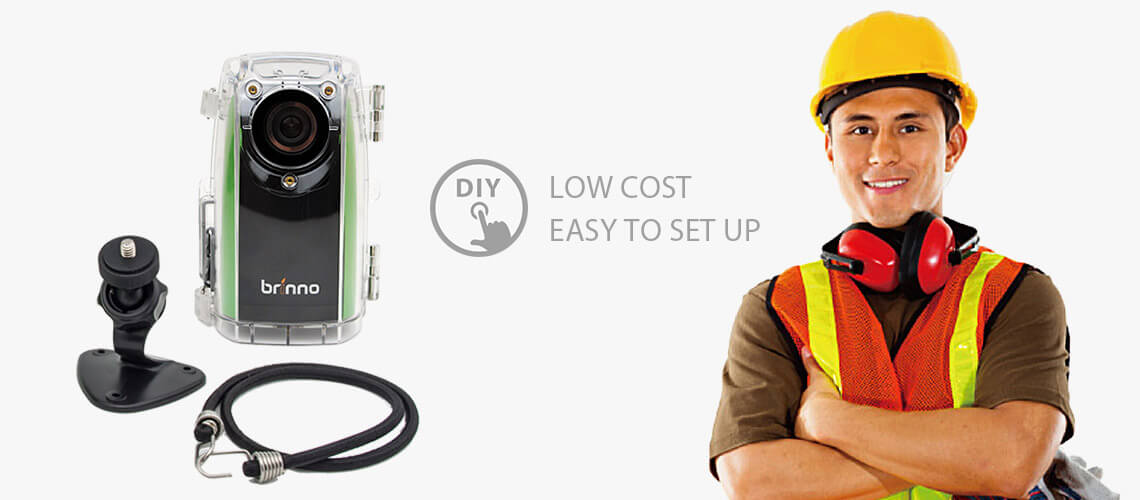

Low Cost Easy to Set Up

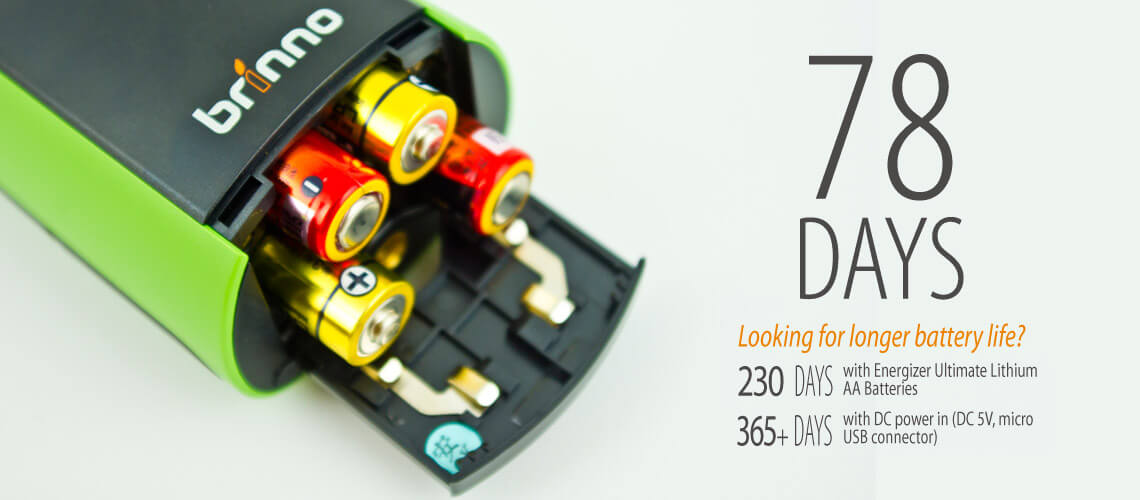

Amazing battery life

World record long term, battery operated construction camera, with an outstanding 4 + months of battery life

78 days battery life

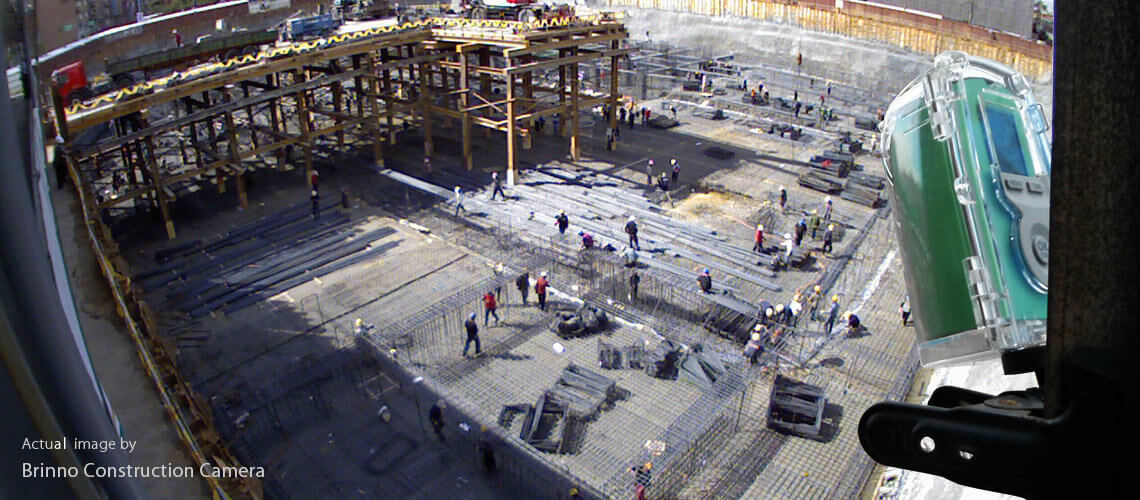

140° Super wide angle view

The 140 degree field of view allows you to capture more of the panoramic construction site equally and simply.

140° Super wide angle view

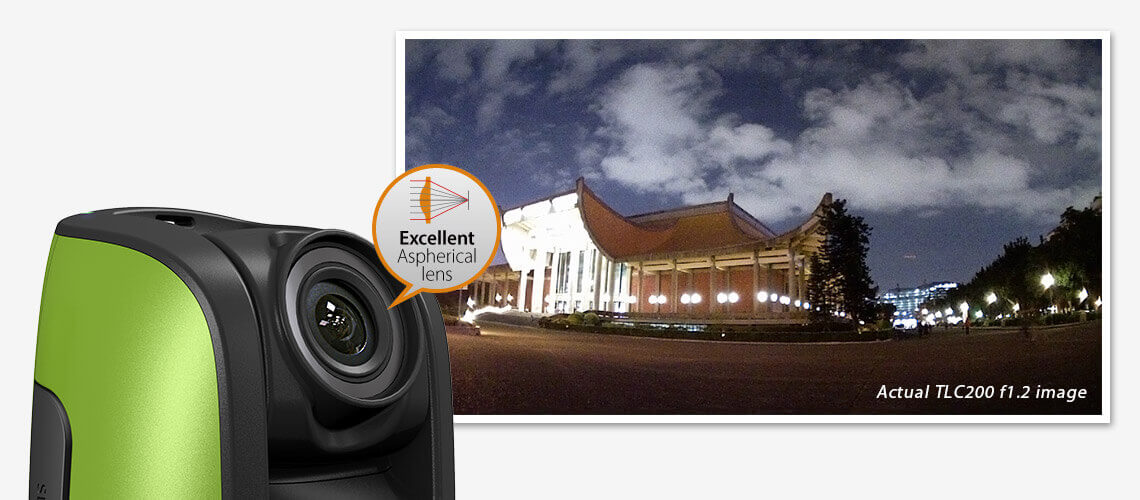

f1.2 Aspherical glass lens

The f1.2 extra low light lens allows you to capture in low light, and see the details often lost in the dark.
You will never miss any on site activities.

Low Cost Easy to Set Up

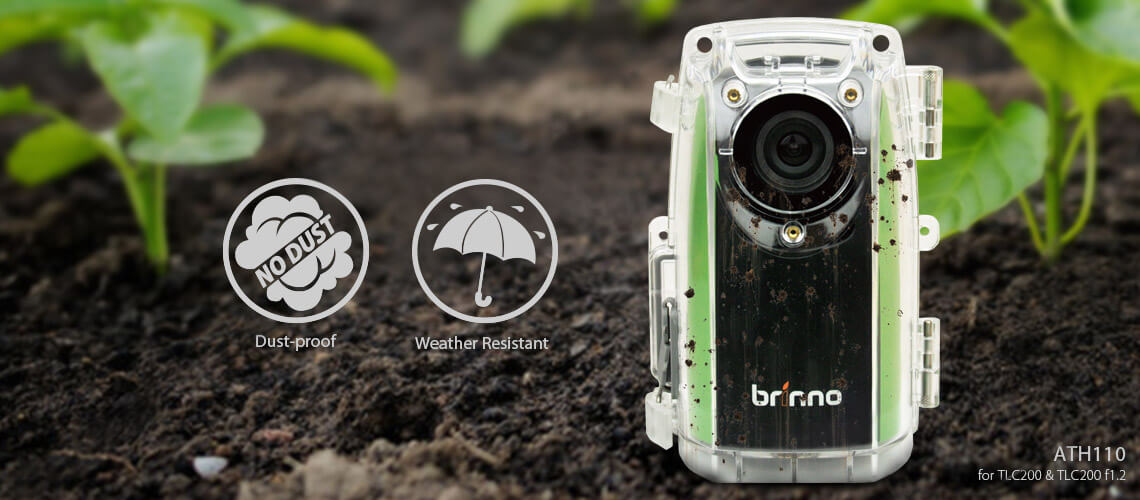

Dust-proof, weather resistant housing

Yes, we know most construction site are outdoors; and in order to let you capture your entire construction project in any weather, we provide a weather resistant housing to protect your construction camera.

Low Cost Easy to Set Up
Specification
Specification

Brinno ships the exact product shown in the picture, however, colors and photos shown may vary from actual product colors due to computer monitor display settings. Therefore the you see here may be different then the actual product shipped.

Camera
Model BCC100
LCD Screen 1.44" TFT LCD
Rotate Lens 120°
Waterproof IP X4 (In use with Weather Resistant Housing (ATH110))
Capture Mode
Time Lapse Various time interval
Stop Motion Optional,(In use with Shutter Line (ATS110))
Optics Lens
Aperture f1.2
Lens type Aspherical Lens (glass lens)
Field of View 140° (480P)
112° (720P)
Focal Length 1.9 mm (Actual)
18 mm (35mm equivalent)
Focus Distance 30 cm (Minimum)
Recording
Time Lapse Video Format: AVI
Resolution: 1280x 720, 640x 480
Still Image Format: JPEG (only for using Shutter Line)
Resolution: 1280x 720, 640x 480
Memory Storage SD Card (Supported up to 32 GB)
Time Interval
ASAP Captures 1~ 4 photos per second
Custom From 1 second to 24 hours
Power
Power source Battery: 4 AA Batteries
DC IN: 5V (Micro USB connector)
Battery Life Captures 270,000 photos at ASAP time interval,
Dimension
Size (DxWxH) 64x 46x 106 mm
Weight 120 g (without batteries)
Color Green/ Black
Operating Temperature 32°F ∼ 113°F(0°C ∼ 45°C)
*Notes:
Preventative replacement of Weather Resistant Housing every 6 months is recommended. Please be advised that this is just an estimation; Weather Resistant Housing might last longer or shorter depending on use and weather conditions.
Package Contents
Battery Life
Comparison
