Improve Front Door Security

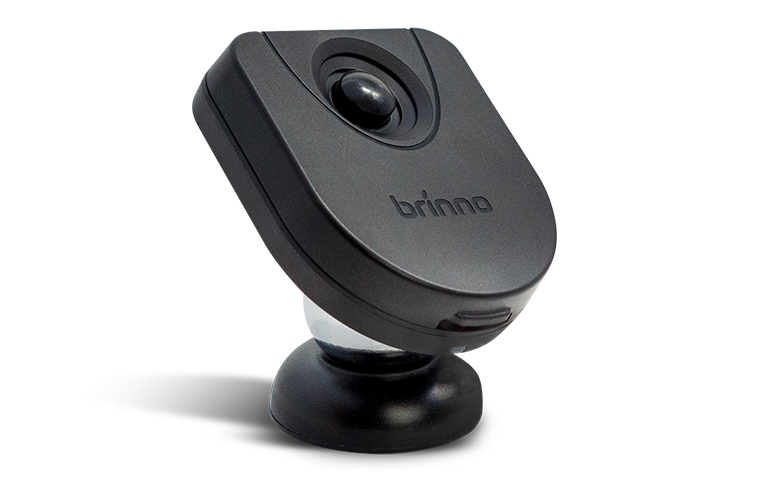

The Motion Detector (MAS200D) is made for Brinno PeepHole Camera (SHC1000 series ) that works smoothly with the existing motion detector (MAS200).
One camera (receiver unit) supports up to 6 motion detectors, hide the additional motion detector unit anywhere near your front door area. It will auto-detect all kinds of doorstep activities the whole day.
Motion Detector for SHC1000 Series
Secret Motion Detector
Up to 6 Detectors
IPX4 Weather Resistant
Long Lasting Power
Quick Installation

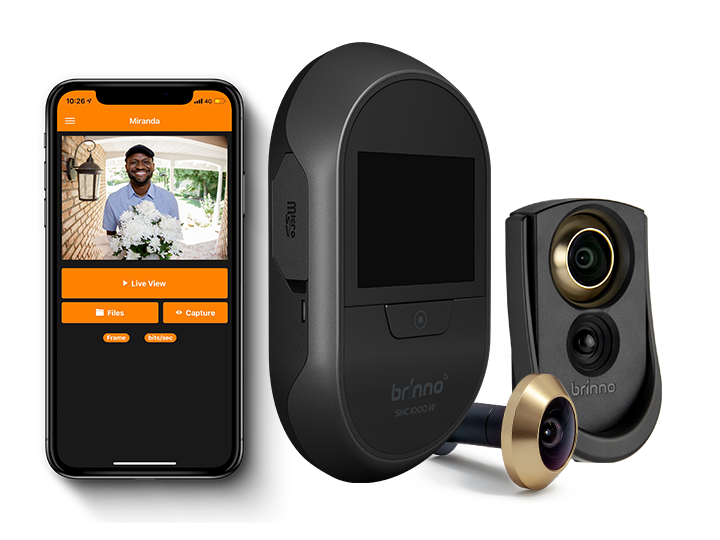

Motion Detector for SHC1000 Series
Works smoothly with Brinno SHC1000 & Brinno DUO (SHC1000W). Mount motion detector externally for transmission up to 32 ft (10m) away with PeepHolecamera. Enhance SHC1000 series to increased zone sensitivity.

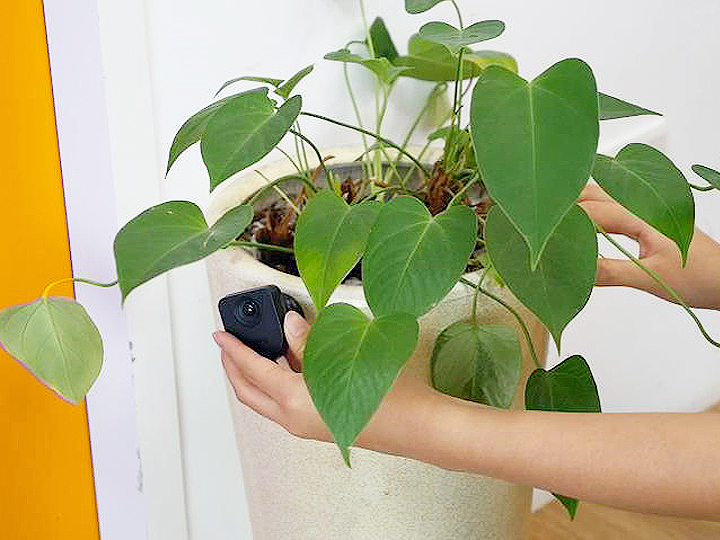

Secret Motion Detector
Hide the portable motion sensor unit anywhere near your front door area. It will auto-detect all kinds of doorstep activities the whole day.

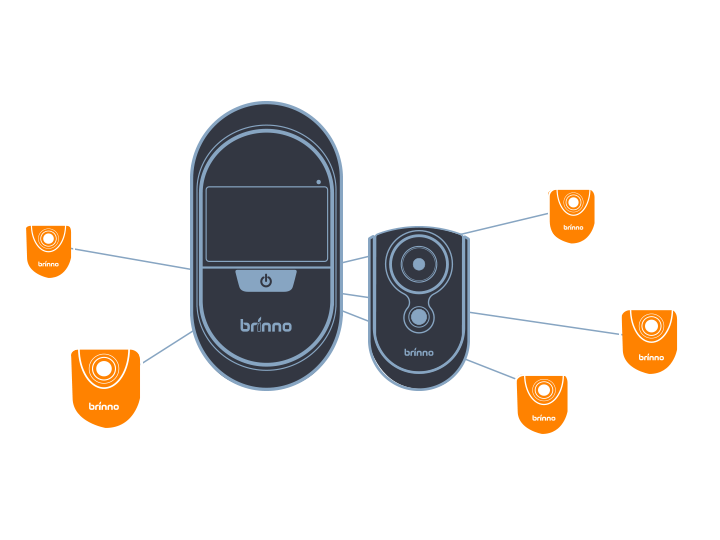

Up To 6 Detectors
One camera (receiver unit) supports up to 6 motion detectors. Motion sensor has the ability to be theft-proof and hidden out of sight in its included door knocker or to be mounted externally to trigger at difficult angles. (supports up to 5 motion detectors along with door knocker)

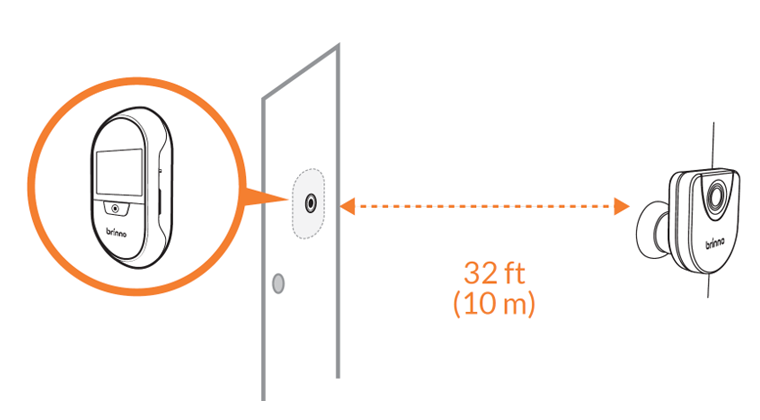

Transmission / Detection
Transmission Distance

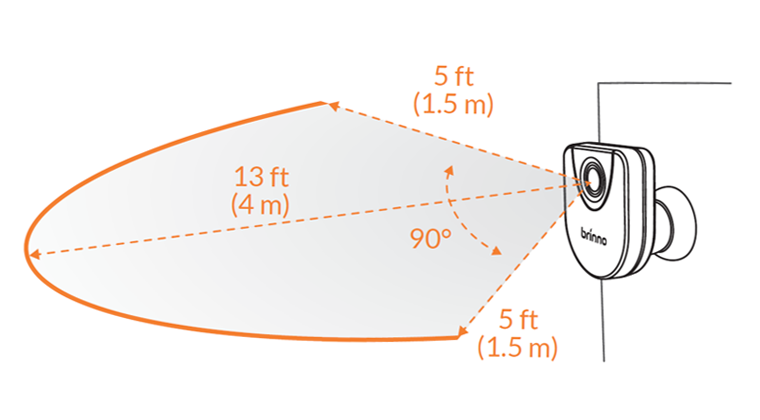

Detection Area

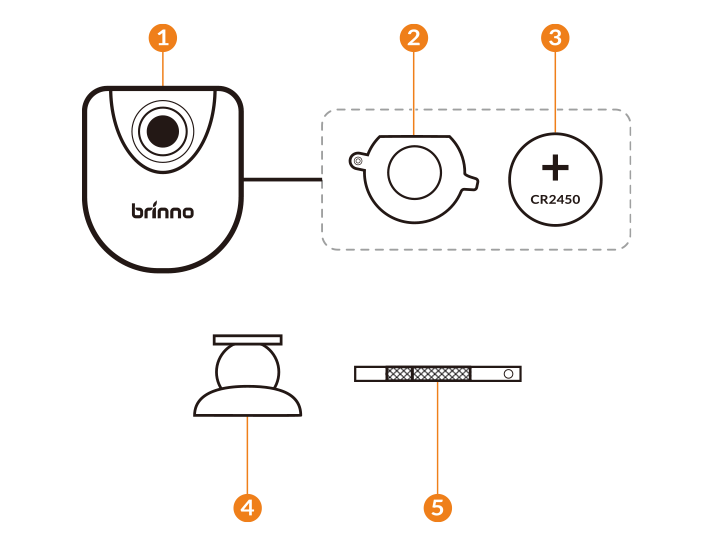

In the Box
- 1Motion Sensor Unit
- 2Battery Lock*(inside motion sensor unit)
- 31 CR2450 Battery(inside motion sensor unit)
- 4Magnetic Wall Mount
- 5Screwdriver
Specifications
| Model NO. | MAS200D |
|---|---|
| Detection Angle* | 90° (horizontal) |
| Detection Distance* | Centerline: 13 ft (4 m) Side: 5 ft (1.5 m) |
| Transmission Distance to Receiver* | 32 ft (10 m) |
| Power Source | 1 CR2450 battery (included) |
| Battery Life | Approx. 28,000 triggers |
| Splash-proof | IPX4 |
| Operating Temperature | 32 °F ∼ 113 °F (0 °C ∼ 45 °C) |
| Compatible Model | SHC1000, SHC1000W |
| Size (WxHxD) | Motion sensor unit:1.7" x 2” x 0.5” ( 44 x 52 x 14 mm) |
| Weight | Motion sensor unit:0.7 oz ( 21 g) (without batteries) |
| Package Contents |
|
- * The battery life and detection area are measured at room temperature 25 degree Celsius.
- * Motion sensor detects changes in temperature; however, as the ambient temperature of the detection area approaches the human body temperature, the detection performance may be different than tested.
