TLC120

Time Lapse allows you to discover and broaden your perspective of your creation.

TLC120 brings your profession to the next level

The TLC120 is a small yet powerful time lapse camera that turns your creation process into a short video. The pocketable size makes every location a creative moment. Up to 20 days of battery life with only a single charge. Brighten the defective of light with HDR sensor, and a customizable Brinno App. TLC120 produce a complete time lapse video without editing. It is designed to help your storytelling better.

Instant Time-lapse Video

HDR Sensor

Up to 3 weeks Battery life

Professional App

TLC120 black and white color

Time Lapse helps better storytelling

BEFORE Time Lapse

It is difficult for artists to show their entire process of their creation.

AFTER Time Lapse

The TLC120 helps capture the creation process entirely with just one single charge.

Show Your Entire Design Process to Attract More Clients

TLC120 is the best tattoo process recorder

As a tattoo artist, you may need a camera for taking photographs or recording videos during a process of your creation. You may use a mobile phone, but you might be interrupted by phone calls or messages while recording; you might be thinking about using a DSLR camera, but it won’t record more than an hour unless you have to pause your work while it’s charging. What you really need is a Time Lapse Camera that can record your entire creation process without being worry about battery life. That is TLC120, the Time Lapse Camera.

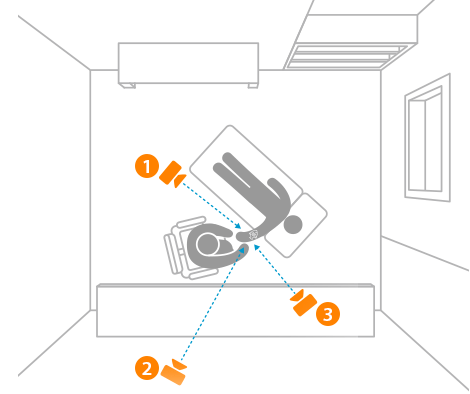

Time Lapse Camera Set up in a Tattoo Studio

Time Lapse Camera
Set up in a Tattoo Studio

Focus

1 Focus

Overlook

2 Overlook

Side Shot

3 Side Shot

TLC120 Easy Set Up

Place it

1 Place it

Connect to the app

2 Connect to the app

Start recording

3 Start recording

Other Areas

One button operation,
create your own time lapse video under any light condition!

High performance HDR video sensor with Pixel Size 4.2μm, no complicated set up, it helps capture great shots/time lapse videos with high contrast under any light condition!

TLC120
Stunningly HDR Sensor with Pixel Size 4.2μm
Wi-Fi

Ipx4 splash and weather resistant

Battery life

Bluetooth

HDR sensor

SD card local storage

Battery life

112° wide angle

Powerful Brinno APP

Download the Brinno app allows you to control your time lapse camera.
The powerful Brinno app includes settings that you can play around with. How to properly set brightness and contrast? We are here to help.

Time Lapse Your Process,
Light Up Your Film

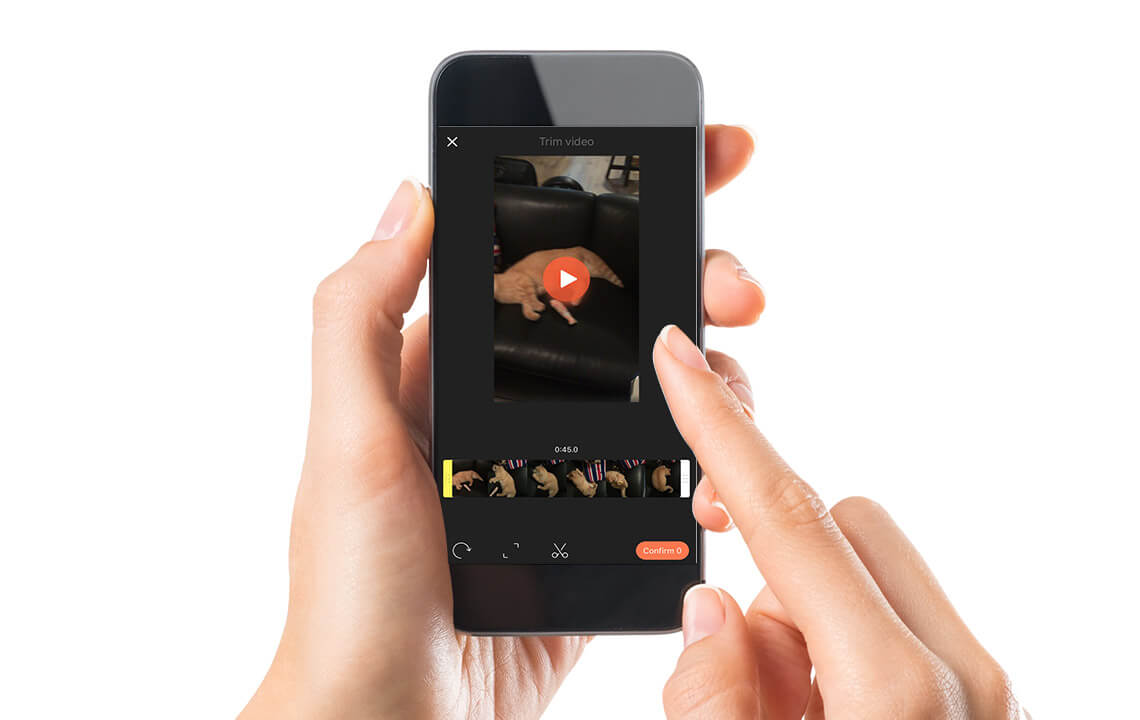

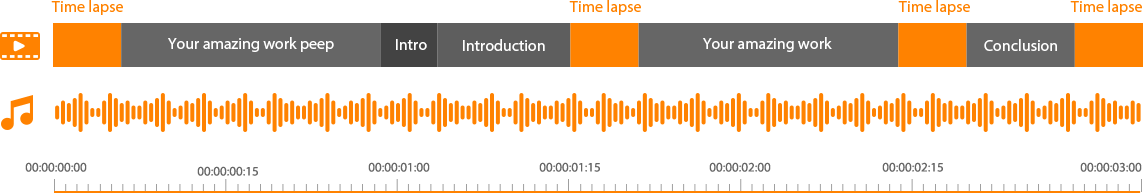

Video editing allows you to tell a great story even greater. It is the key to blend images and sounds to make your audiences feel emotionally connected and amazed by your work. Create your video story by your own flow.

vivavideo

Video editing demonstration

TLC120
Product name Wi-Fi TimeLapse Camera TLC120
Model No. TLC120
Splashproof IPX4
Image Sensor
  • 1/3“ HDR Image Sensor
  • Dynamic Range 115 db
  • Pixel Size 4.2μm
  • Sensitivity3650mV/lux-sec (Ultra good low light quality)
Optics Lens
  • Low Distortion Fixed Aspherical Lens
  • Aperture: F2.0
  • Field of View: 112°
  • FocalLength: 2.8mm (tatsächlichen), 19 mm (35mm equivalent)
Video Format AVI(1280x720 Resolution)
Shooting Setting
  • Scene:Daylight, Twilight, Night, Moon, Star
  • White Balance: Auto, Day, Shade, Cloudy, Fluorescent Light (Cool), Fluorescent Light (Warm), Tungsten Light
  • Custom Image: Exposure, Saturation, Contrast, Sharpness
Memory Storage SD / SDHC Card (Supported up to 32 GB)
Power Source Li-Po Rechargeable Battery (1500mAh)DC IN: 5V (Micro USB Connector)
Battery Life 1.5 days with a 2 seconds time interval20 days with a 5 minutes time interval
Wireless Wi-Fi (802.11 b/g/n), Bluetooth 4.0 (BLE)
Brinno App Android 4.4 / iOS 7.0 above
Camera Size 2.36x2.36x1.32 in (60x60x33.5 mm)
Camera Weight 3.6 oz (101 g)
Color Black, Orange
Package contents
  • HDR Time Lapse Camera (TLC120)
  • 8GB SD card
  • Micro USB cable
  • Quick guide
Operation temperature 32°F ~ 113°F (0°C ~ 45°C)

App Shutter Mode

(Using the Brinno Camera APP with Brinno TLC120 together for the Time Lapse shooting) / Scene: Daylight

Time Interval Frames Days
1 sec 66375 1
2 sec 62471 1
5 sec 53100 3
10 sec 42480 5
20 sec 30343 7
30 sec 23600 8
1 min 14160 10
5 min 3371 12
10 min 1727 12
1 hr 294 12
4 hr 74 12
24 hr 12 12

Camera Shutter Mode

(Start time lapse recording through camera shutter button) / Scene: Daylight

Time Interval Frames Days
1 sec 66375 1
2 sec 64130 1
5 sec 58224 3
10 sec 50475 6
20 sec 39865 9
30 sec 32940 11
1 min 21656 15
5 min 5789 20
10 min 3022 21
1 hr 523 22
4 hr 131 22
24 hr 22 22
  • The battery life chart demonstrates only when video recording.
  • Battery power consumption depends on factors such as the process of preview wait, file transfer, network configuration, and many other factors; actual results will vary.
  • The estimated battery life are tested under room temperature conditions of 25 degrees Celsius.
  • Battery life may vary based on environmental conditions, temperature, and many other factors; actual results will vary.
TLC200 TLC200Pro TLC120
Model TLC200 TLC200 Pro TLC120
Viewfinder 1.44" LCD 1.44" LCD -
Image sensor 1.3 MP 1.3 MP HDR 1.3 MP HDR
Resolution 1280 x 720 (16:9) 1280 x 720 (16:9) 1280 x 720 (16:9)
Aperture f/2.8 f/2.0 f/2.0
Focal length (mm) 36 19 (35mm equivalent) 19 (35mm equivalent)
Field of view 59° 112° (720P) 112° (720P)
112° (720P) -
Aspherical lens -
Interchangeable CS mount lens - -
HDR video -
Scene setting -
White balance setting -
Micro USB output -
Webcam function -
Wi-Fi - - Wi-Fi (802.11 b/g)
Bluetooth - - BLE 4.0
Brinno APP - - Android 4.4/ iOS 7.0 above
Time interval 0.5 sec, 1 sec-24 hrs 0.3 sec, 1 sec-24 hrs 0.3 sec, 1 sec-24 hrs
Battery life 270,000 photos 240,000 photos 66,000 photos
Storage media SD/SDHC card SD/SDHC card SD/SDHC card
Media included 4GB 4GB 8GB
Maximum storage capacity 32GB 32GB 32GB
Video format AVI AVI AVI
Weather resistant With optional housing ATH110 With optional housing ATH120 IPX4
Stop Motion video With optional shutter release cable -
Still images (JPEG, 1280 x 720) With optional shutter release cable With optional shutter release cable -
Batteries required 4 AA (included) 4 AA (included) Li-Po rechargeable Battery,1500mAh
External power 5V micro USB 5V micro USB 5V micro USB
Size (WxHxD) 64 x 46x 106 mm 54 x52x 107 mm 60 x60 x 33.5 mm
Weight 120 g 140 g 101 g
Color Green/ White Black Black/ orange
